PRODUCT | PFB
- Product name : PFB
- Category : Balance » Kern
- Catalog : PFB_support.pdf
Description

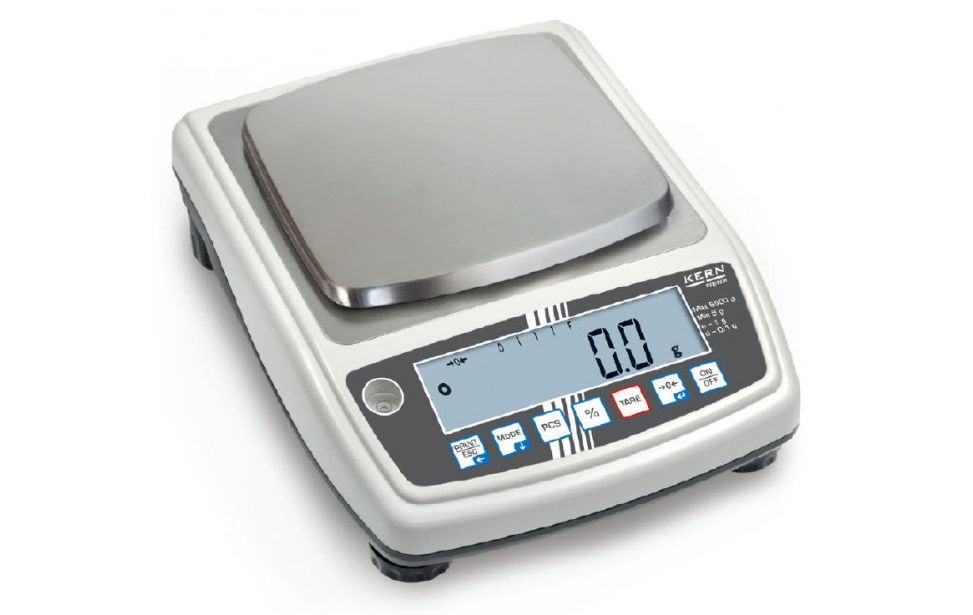

Precision balance PFB
Quick-displaying precision balance with user-friendly operation modes and EC type approval
Large backlit LCD display, digit height 16 mm. Interface cable to the balance, cable length approx. 1 m, standard. Dimensions WxDxH 250x180x105 mm
- Easy use: All primary functions have their own key on the keypad
- Compact size, practical for small spaces
- Capacity display: A bar lights up to show how much of the weighing range is still available
- Level indicator and levelling feet to level the balance precisely, fitted as standard, to give the most accurate weighing results
- Draught shield standard for models with weighing plate size and . Removable metal cover with pipette opening. Weighing space WxDxH 158x143x64 mm
- Backlit LCD display, digit height 15 mm
- Overall dimensions (without draught shield) WxDxH 200x190x87 mm
- Net weight approx. 2 kg
- Permissible ambient temperature 5 °C / 35 °C
With a view models as follows :
|
Model |
Weighing range [Max] g |
Readout
[d] g |
Verification value [e] g |
Reproducibility
g |
Linearity
g |
|
PFB 120-3 |
120 |
0,001 |
– |
0,001 |
± 0,003 |
|
PFB 200-3 |
200 |
0,001 |
– |
0,001 |
± 0,003 |
|
PFB 300-3 |
300 |
0,001 |
– |
0,002 |
± 0,003 |
|
PFB 1200-2 |
1200 |
0,01 |
– |
0,01 |
± 0,03 |
|
PFB 2000-2 |
2000 |
0,01 |
– |
0,01 |
± 0,03 |
|
PFB 3000-2 |
3000 |
0,01 |
– |
0,01 |
± 0,03 |
|
PFB 6K0.05 |
6000 |
0,05 |
– |
0,05 |
± 0,15 |
|
PFB 6000-1 |
6000 |
0,01 |
– |
0,1 |
± 0,3 |
|
|
|||||
|
PFB 600-2M |
600 |
0,01 |
0,1 |
0,01 |
± 0,002 |
|
PFB 600-1M |
600 |
0,1 |
0,1 |
0,1 |
± 0,1 |
|
PFB 6000-1M |
6000 |
0,1 |
1 |
0,1 |
± 0,3 |
|
PFB 6000-0M |
6000 |
1 |
1 |
1 |
± 1 |
