Description

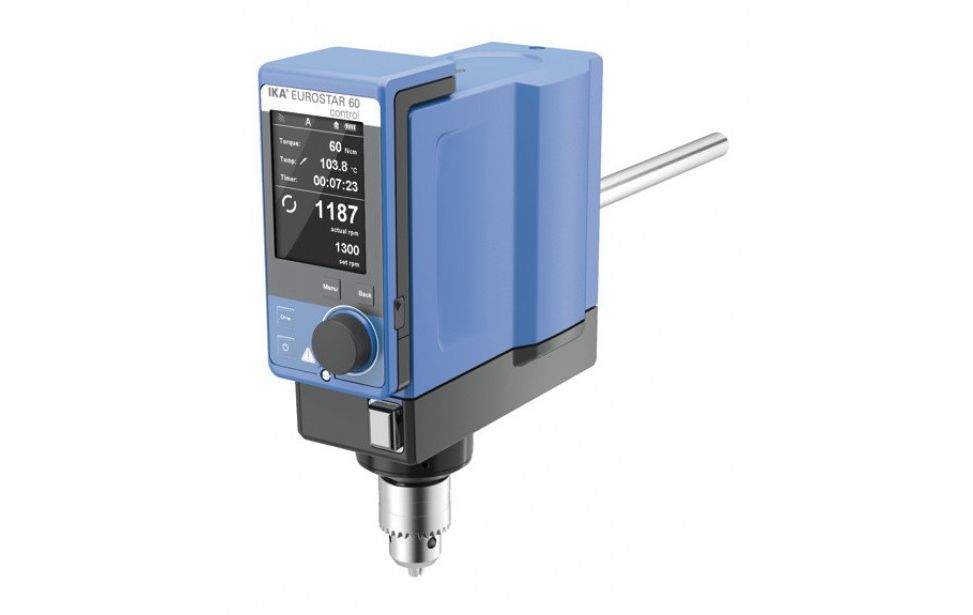

EUROSTAR 60 control

Overhead Stirrers

Universal laboratory stirrer designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 - 2000 rpm. The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

- Multilingual TFT display

- Programmable functions

- Integrated temperature measurement

- Interval operation

- Timer function

- Adjustable safety circuit

- Locked function

- Infinitely adjustable speed

- Push-through agitator shafts

- Overload protection

- Short-term overload operation

- Slim casing

- Quiet operation

- Error code display

- H 67.60 temperature sensor and WH 11 WiCo holder included in delivery

Technical data :

- Width : 86mm

- Deviation of speed measurement n > 300rpm : 1±%

- Power input : 176W

- Hollow shaft, inner diameter : 11mm

- Time setting max. : 6000min

- Deviation of speed measurement n < 300rpm : 3±rpm

- Extension arm length : 220mm

- Temperature measurement resolution : 0.1K

- Setting accuracy speed : 1±rpm

- Temperature measuring range max. : +350°C

- Voltage : 230V

- Extension arm diameter : 16mm

- Accuracy of temperature measurement : ±0.5 + tolerance PT1000 (DIN IEC 751 Class A)K

- Limit deviation temperature sensor : ≤ ± (0.15 + 0.002xITI)K

- Torque max. at stirring shaft : 60Ncm

- Output max. at stirring shaft : 126W

- Nominal torque : 0.6Nm

- Motor rating input : 168W

- Motor rating output : 131W

- Stirring quantity max. per stirring position (H2O) : 40l

- Viscosity max. : 50000mPas

- Deviation of torque measurement I : 6±Ncm

- Speed min. : 0/30rpm

- Communication distance (depend onbuilding) max. : 150m

- Depth : 230mm

- Height : 267mm

- Chuck range max. diameter : 10mm

- Chuck range min. diameter : 0.5mm

- Connection for ext. temperature sensor : PT1000

- Temperature display : yes

- Motor principle : Brushless DC

- Housing material : alu-cast coating / thermoplastic polymer

- Speed display : TFT

- Speed control : electronic, stepless

- Fastening on stand : extension arm

- USB interface : yes

- RS 232 interface : yes

- Protection class according to DIN EN 60529 : IP 40

- Stirring element fastening : chuck

- Hollow shaft (push-through - when stopped) : yes

- Torque display : yes

- Torque measurement : trend

- Temperature measuring range min. : -10°C

- Permissible ON time : 100%

- Weight : 4.7kg

- Speed max. : 2000rpm

- Time setting min. : 1min

- Frequency : 50/60Hz

- Permissible relative humidity : 80%

- Intermittent operation : yes

- Timer display : TFT

- Permissible ambient temperature min. : 5°C

- Permissible ambient temperature max. :40°C

- Timer : yes
