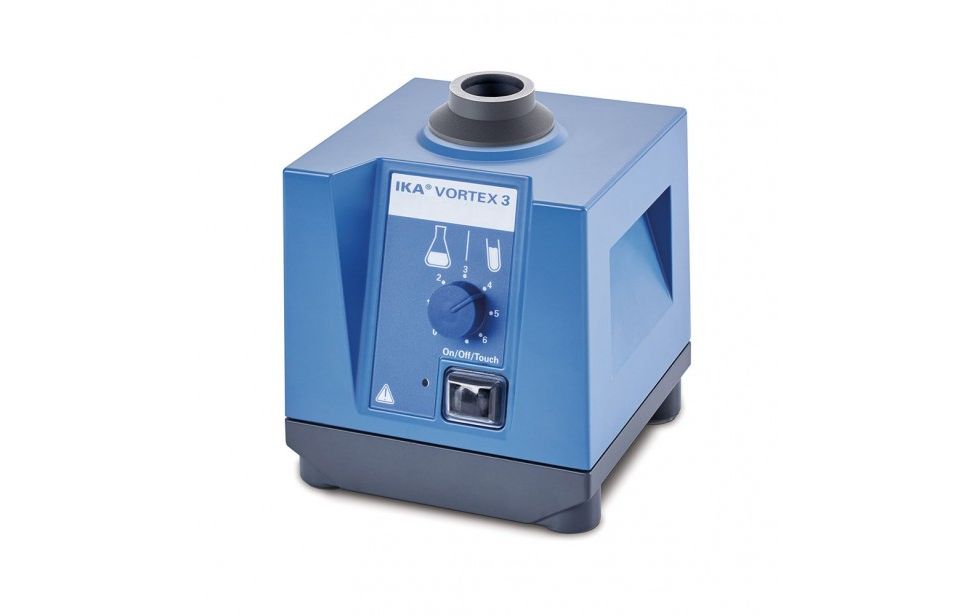

VORTEX 3

Vortex Mixer

Vortex shaker suitable for short-time operation (touch function), activated by pressing shaker attachment or continuous operation.

- Wide speed range, infinitely adjustable

- Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. Eppendorf tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.), please order separately

- Attachments securely click onto appliance in any position

- Special strap (VG 3.36, page 51) ensures easy handling of round/Erlenmeyer flasks

- Sturdy metal zinc die cast casing

- Compact design

- Short-time operation activated by pressing attachment (touch function)

- Stable at high speeds thanks to special feet (silicon base with ultra high vibration damping)

- Eccentric with ball bearings

- Suitable for continuous operation with low self heating thanks to self ventilation of motor

Shaking movement: orbital

Orbital diameter: 4 mm

Infinitely adjustable speed range: 500 - 2.500 rpm

Technical data :

- Permissible ON time : 100%

- Motor rating input : 58W

- Shaker diameter : 4mm

- Motor rating output : 10W

- Permissible relative humidity : 80%

- Frequency : 50/60Hz

- Speed min (adjustable) : 500rpm

- Width : 127mm

- Power input : 60W

- Voltage : 200 - 240/115/100V

- Weight : 4.5kg

- Height : 136mm

- Depth : 149mm

- Permissible ambient temperature max. : 40°C

- Permissible ambient temperature min. : 5°C

- Shaking table lock : no

- Protection class according to DIN EN 60529 : IP 21

- Type of movement : orbital

- Analog output : no

- RS 232 interface :no

- Speed display :none

- Touch function :yes

- Speed max. : 2500rpm

- Speed min. : 0rpm

- Operating mode : continuous operation

- Number of microtiter plates : 1

- Working with microtiter plates : yes

- Timer : no
