PRODUCT | AMI Series Magnetic Stirrers

AMI Series Magnetic Stirrers

Single-position or 4-position illuminated magnetic stirrer, particularly useful for titrations.

Rugged Design

- Control panel is shielded from liquid spills

- Epoxy-coated tough steel casing

- Designed for the longest lifespan and guaranteed by 3 years warranty

Choice of Capacities

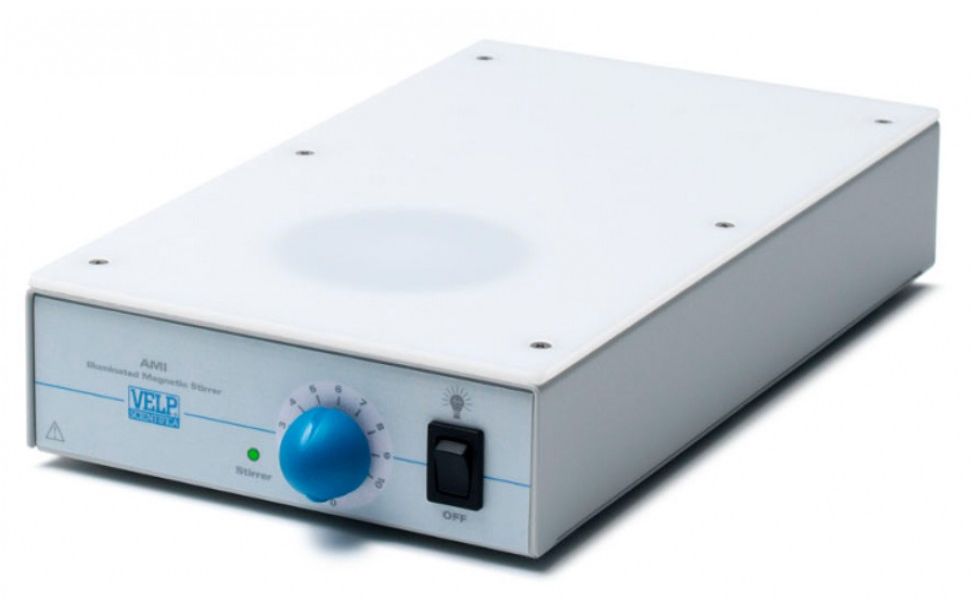

- AMI: 1 place, maximum 5 liter flask

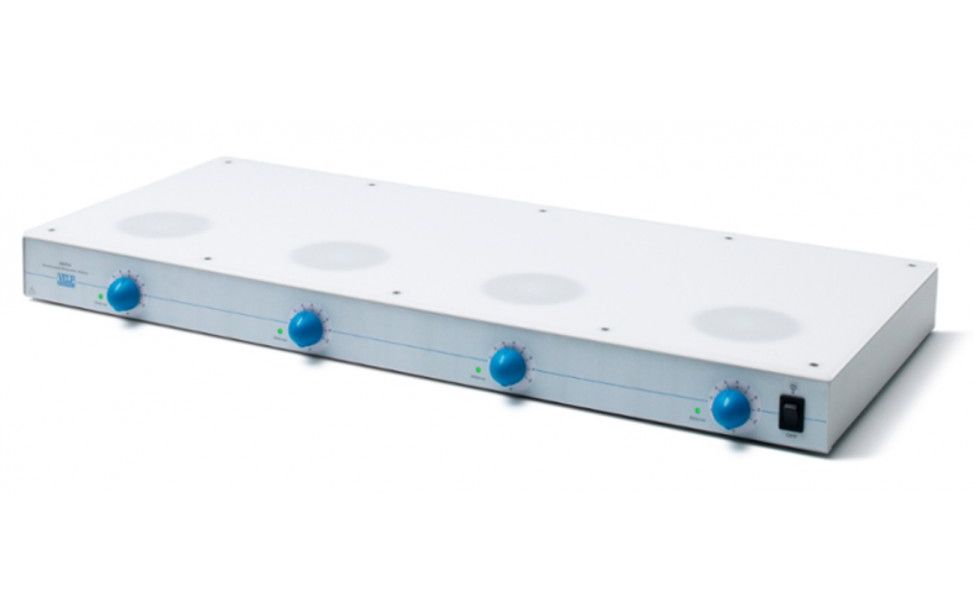

- AMI 4: 4 places, maximum 4 x 5 liter flasks (max. Ø 150 mm)

Applications Oriented

- Illuminated surface for visualization of particles and color changes

- Ideal for microtitration, in particular for subtle color changes

- Soft start but rapidly reaching set speed

- Excellent speed control (electronic), even at low speed

Convenient Operation

- Ergonomic - very low height

- 4-position model provides independent speed regulation

- Speed regulation up to 1100 rpm

- Universal mains voltage range

- Light weight

GENERAL FEATURES :

Models:	- AMI, Single-position, 100-240 V / 50-60 Hz, Cat. No. : F204A0167 - AMI 4, 4 positions, 100-240 V / 50-60 Hz, Cat. No. : F204A0168
Construction material:	epoxy painted metal structure
Stirring volume (H2O):	up to 5 liters per position
Distance between stirring position centres:	AMI 4 : 150 mm
Power:	AMI : 1.2 W AMI 4 : 4.8 W
Weight:	AMI : 1.2 Kg (2.6 lb) AMI 4 : 4.0 Kg (8.8 lb)
Dimensions (WxHxD):	AMI : 150x55x270 mm (5.9x2.2x10.6 in) AMI 4 : 600x55x270 mm (23.6x2.2x10.6 in)

PERFORMANCE
Electronic speed regulation:	up to 1100 rpm
Speed regulation:	excellent speed regulation even at low number of revolutions
Stirring system:	high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation
