PRODUCT | UDK 129
- Product name : UDK 129
- Category : Kjeldahl Distillation Unit » Velp
- Catalog : UDK_129__support.pdf
Description

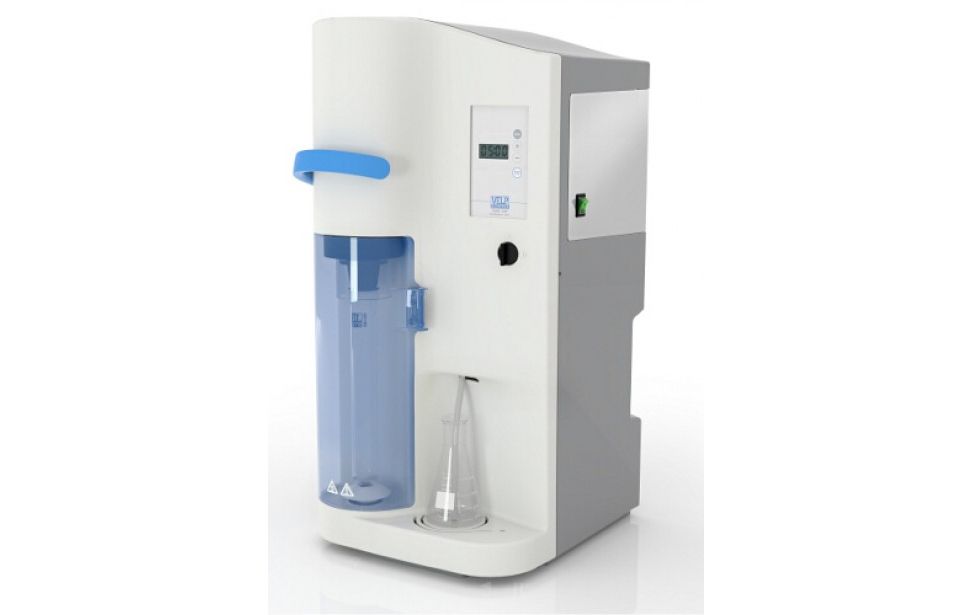

UDK 129
Kjeldahl Distillation Unit
Entry-level Kjeldahl distillation unit for your analyses concerning different applications such as determining ammoniacal nitrogen, protein determination, nitrogen content (Kjeldahl or direct alkaline distillation), nitric nitrogen (after reduction/Devarda), phenols, volatile acids, cyanides and alcohol content.
Automated Operation:
- System runs after setting sodium hydroxide addition and distillation time
High Tech :
- No loss of nitrogen: distillate temperature stays below threshold
- Accurate dosing of reagents with high precision pumps
Outstanding Reliability :
- Maintenance-free, resistant, patented steam generator
- Patented titanium condenser for unmatched performance
- Durable technopolymer splash head
- Chemically-resistant technopolymer housing
Operator Safety :
- Lever operation simplifies tube insertion / removal (all sizes)
- Protection screen for distillation chamber
- Drip tray collects splashes
- Zero pressure steam generator
Ecology & Standards :
- Performs to AOAC, EPA, DIN and ISO standards
- Incorporates TEMS™ technology, automated water supply control reduces consumption
General Features :
|
Model : |
UDK 129, 230 V / 50 - 60 Hz, Cat. No. : F30200120 |
|
Structure: |
Corrosion-resistant technopolymer |
|
Display: |
LCD |
|
Time related to start for Devarda alloy analysis: |
0 – 99 min |
|
Protocol library: |
1 customizable method |
|
Reproducibility (RSD): |
≤ 1 % |
|
Recovery: |
≥ 99.5 % at nitrogen levels between 1 and 200 mg N |
|
Detection Limit: |
≥ 0.1 mg N |
|
Power: |
2100 W (1700 W at 115V) |
|
Weight: |
25 kg / 55 lb |
|
Dimensions (WxHxD): |
385x780x416 mm (15.2x30.7x16.4 in) |
|
|
|
|
Performance : |
|
|
Distillation time: |
5 minutes to collect 100 ml of distillate |
|
Sodium hydroxide addition: |
automatic |
|
Sodium hydroxide volume: |
0 - 100 ml |
|
Tap water consumption: |
from 0,5 l/min at 15°C – from 1 l/min at 30°C |
