PRODUCT | DMP-600 & DMP-800
- Product name : DMP-600 & DMP-800
- Category : Melting Point » Innotech
- Catalog : DMP-600__DMP-800_support.pdf
Description

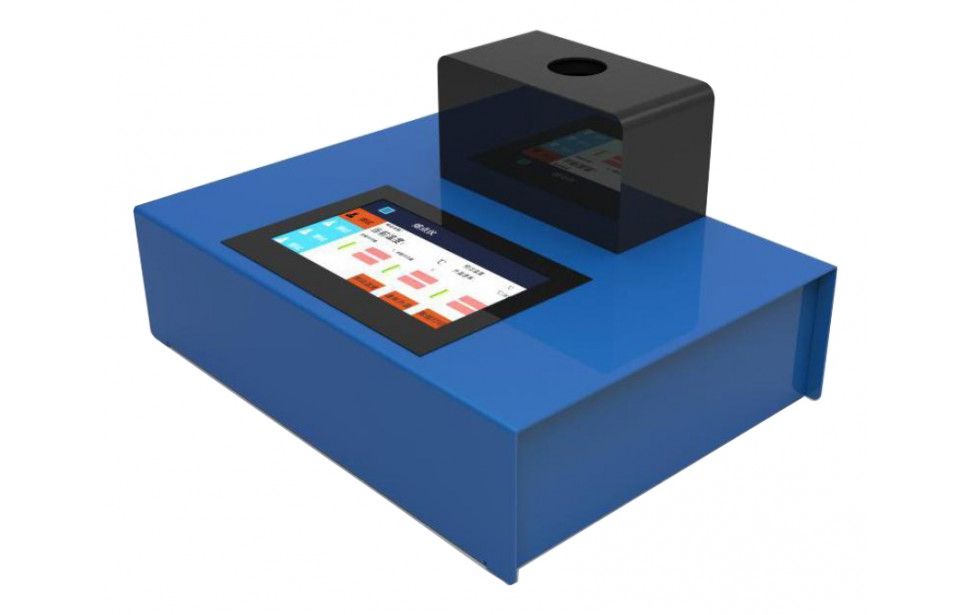

DMP-600 & DMP-800
Melting Point Device
- Colorful Touch Screen Display.
- Increase Temperature can easy setting from 0.1 to 10°C/min.
- One time can test 3 samples. Temperature can reach to 40010°C
- High resolution microscope lenses can observe sample clearly.
- Built-in cooling fan can easy come down temperature and test next samples.
- PID control temperature, fully closed design of furnace body to avoid any empyrosis for the user.
|
Model |
DMP-800 |
DMP-600 |
|
Temperature Range |
Room Temperature to 400°C |
Room Temperature to 320°C |
|
Cooling Function |
Built-in cooling fan |
NO |
|
Resolution |
0.1°C |
|
|
Temperature Increase Speed |
0.1°C-10°C (100 temperature point infinitely adjustable) |
|
|
Temperature Control Method |
PID control temperature, fully closed design of furnace body |
|
|
Accuracy |
±0.4°C (<250°C), ±0.7°C (>250°C) |
|
|
Repeatability |
When 0.1°C/Min, repeatability ±0.3°C |
|
|
Display |
FTF High Solution Color Touch Screen |
|
|
Output |
RS232 interface |
|
|
Sample Tube |
external diameter φ1.6mm, internal diameter : φ1.2mm |
|
|
Voltage |
100V-240V 50HZ-60HZ |
|
|
Power |
100W |
|
|
Size |
250mm x 250mm x 150mm |
|
|
Weight |
1.2kg |
|
