PRODUCT | SL400
- Product name : SL400
- Category : Sound Level Meter » Extech
- Catalog : SL400_support.pdf
Description

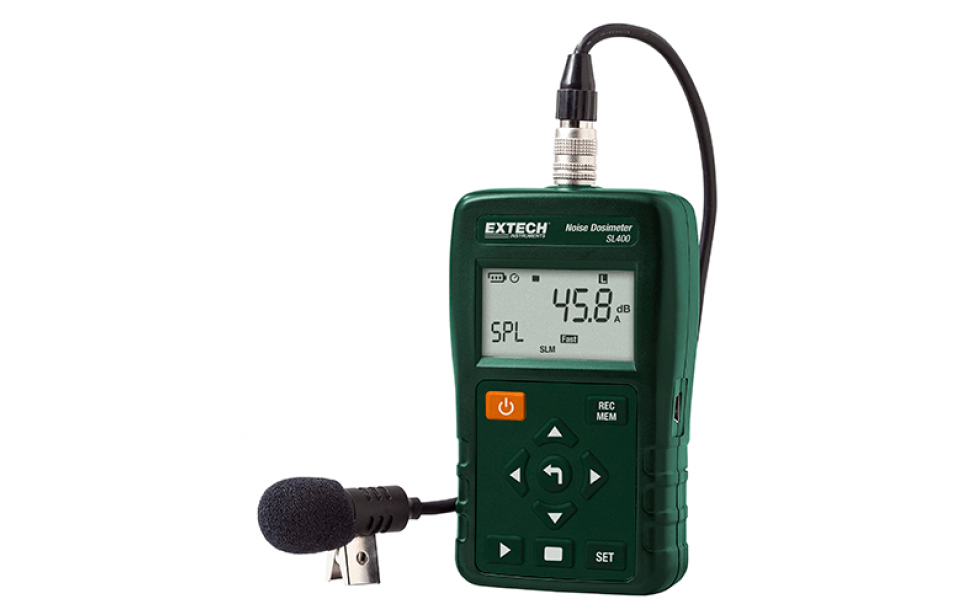

SL400
Personal Noise Dosimeter with USB Interface
Provides Noise Surveys for Compliance with OSHA, MSHA, DOD, ACGIH and ISO Standards
|
Specifications |
Range |
|
Standards |
IEC61252-1993, IEC67672-1-2003, ANSI S1.25-1992, ANSI S1.4-1983, ANSI S1.43-1997 |
|
Ranges (Accuracy) |
30 to 90 dB, 50 to 110dB; C, Z Peak: 70 to 140dB / C and Z Peak: 90 to 143dB (Accuracy: ±1.4dB@94dB 1kHz) |
|
Frequency Weighting |
A, C, Z |
|
Response Rate |
Fast, Slow, Impulse |
|
Bandwidth |
20Hz to 8kHz |
|
Memory |
Dose: 10,000 points/SLM: 999,999 points |
|
Criterion Level / Threshold Level |
30 to 140dB in 0.1dB steps / 30 to 140dB in 0.1dB steps |
|
Exchange Rate |
3, 4, 5 or 6 dB |
|
Measurement Duration |
5, 10, 15, or 30 minutes; 1, 2, 4, 8, 10, 12, or 24 hours |
|
Measurement Modes |
%Dose, Lxmax, Lxyp, Lxmin, Lxeq, SEL (LAE), PeakMAX, LAVG, TWA, LEP, LN% SPL, Lxmax, Lxyp, Lxmin, Lxeq, SEL (LAE) PeakMAX |
|
Dimensions/Weight |
4.2 x 2.6 x 1.3" (107 x 65 x 33mm) - exclude connector on top/ 7oz. (198g) include batteries and microphone cable |
