PRODUCT | T 25 digital ULTRA-TURRAX®
- Product name : T 25 digital ULTRA-TURRAX®
- Category : Disperser » Ika
- Catalog : T_25_digital_ULTRA-TURRAX®__support.pdf
Description

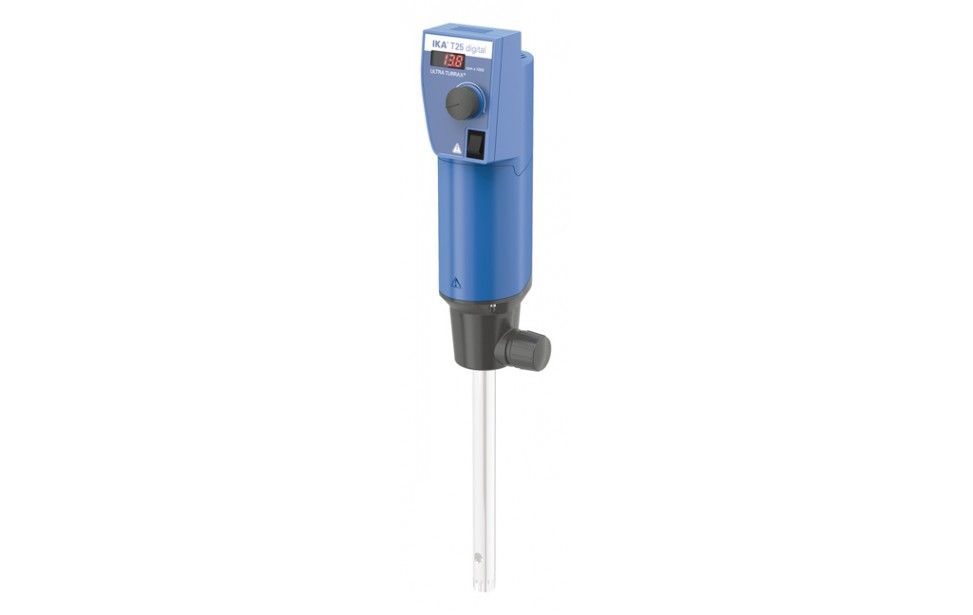

T 25 digital ULTRA-TURRAX®
Dispersers
High-performance dispersing instrument for volumes from 1 – 2000 ml (H2O) with digital speed display. It offers a wide speed range from 3000 – 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements adds versatility. Applications ranges from homogenizing waste water samples, use in laboratory reactors, dispersion tasks under vacuum / pressure and sample preparation in medical research.
- Digital speed display
- Electronic speed control
- Electronic overload protection
- Stainless steel dispersing elements can be cleaned quickly and easily
- Plastic disposable dispersing elements are available in two sizes
- Error code display
- Quiet operation
Technical Data :
|
Motor rating input |
800 W |
|
Motor rating output |
500 W |
|
Volume range (H2O) |
0.001 - 2 l |
|
Viscosity max. |
5000 mPas |
|
Speed range |
3000 - 25000 rpm |
|
Speed deviation |
1 % |
|
Speed control |
stepless |
|
Speed display |
LED |
|
Noise without element |
75 dB(A) |
|
Extension arm diameter |
13 mm |
|
Extension arm length |
160 mm |
|
Process type |
batch |
|
Permissible ON time |
100 % |
|
Dimensions (W x H x D) |
87 x 271 x 106 mm |
|
Weight |
2.5 kg |
|
Permissible ambient temperature |
5 - 40 °C |
|
Permissible relative humidity |
80 % |
|
Protection class according to DIN EN 60529 |
IP 20 |
|
Voltage |
220 - 240 / 100 - 120 V |
|
Frequency |
50/60 Hz |
|
Power input |
800 W |
