PRODUCT | SL130G
- Product name : SL130G
- Category : Sound Level Meter » Extech
- Catalog : SL130G_support.pdf
Description

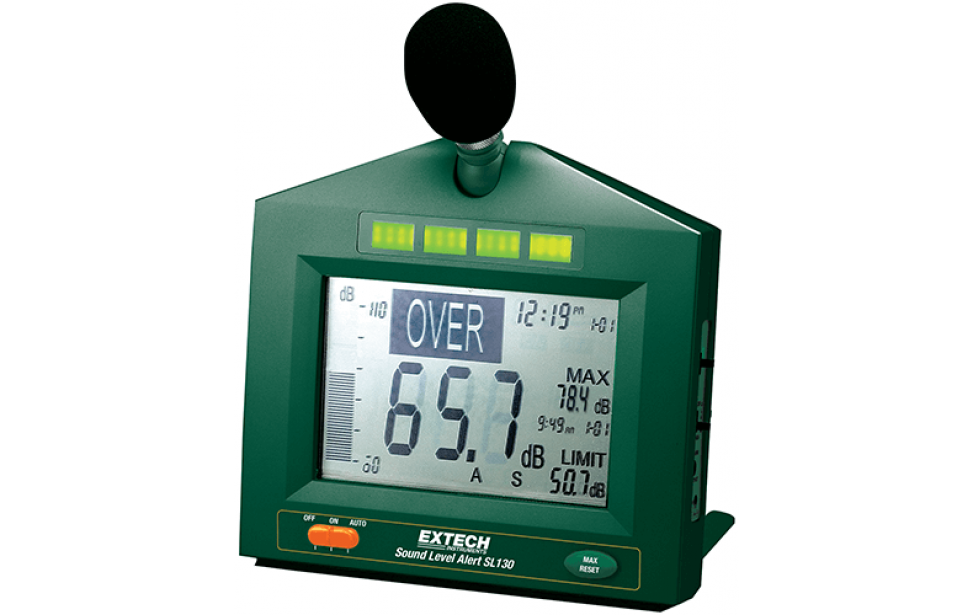

SL130G
Sound Level Alert with Alarm
30-130dB Meter with built-in under/over-range LEDs indicators
|
Specifications |
Range |
|
Display |
4.6 x 3.125" (117x79mm) multifunction LCD |
|
Frequency bandwidth |
31.5 Hz to 8 kHz |
|
Microphone |
0.5" Electret Condenser Microphone (detachable) |
|
Measurement ranges |
30 to 80dB, 60 to 110dB, 80 to 130dB |
|
Frequency weighting |
'A' and 'C' |
|
Response time |
Fast: 125ms / Slow: 1s |
|
Resolution |
0.1dB |
|
Alarm output |
3.5mm Mono Phone Plug, Maximum: 3.4mA @ 5 VDC |
|
Minimum Output |
Voltage: 2.5 VDC |
|
Power |
AC/DC Adaptor for full functions; 8xAA batteries for monitoring function only without LED alert |
|
Dimensions/Weight |
8.75x7.1x1.25" / 0.63 lbs. (22x18x3.2cm / 285g) |
