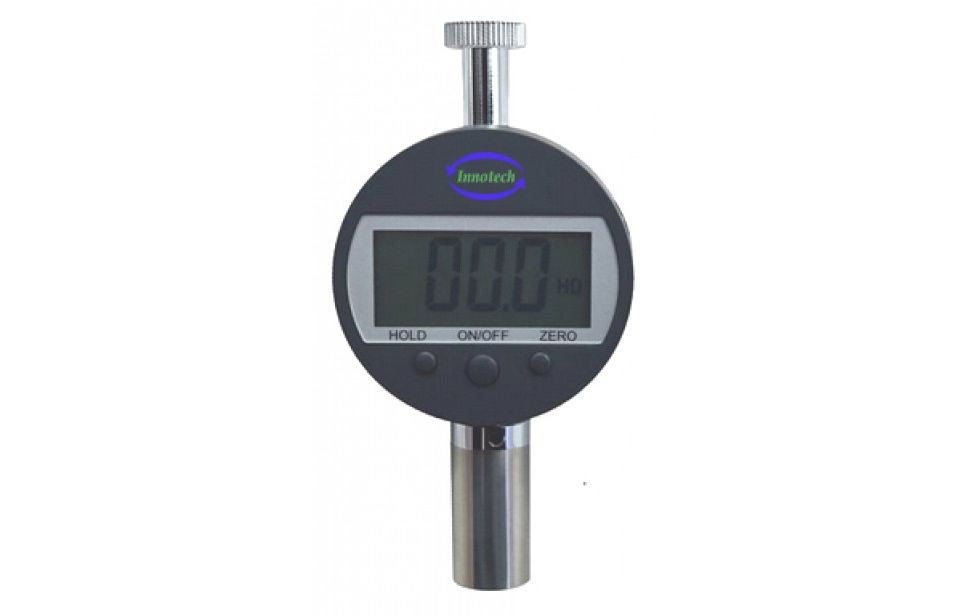

LXD-D
HARDNESS TESTER
Features :
LXD-D hardness tester is suitable for hardness test of high degree of hardness material, such as common hard rubber, hardened resin, acryl, plexiglas, thermos plastic rubber, printing plate fibre. The product conforms to HG/2489 and othe related standard reques
Technical Data :
Measuring range |
0 – 100 HD |
Recomended measurement range |
20 – 90 HD |
Outline dimension |
115 x 60 x 25 mm |
Pressure Needle Range |
2.5 mm |
End pressure of pressure head |
SR0.1mm |
Net weight |
~ 0.16 kg ~ 0.14 kg |
