Description

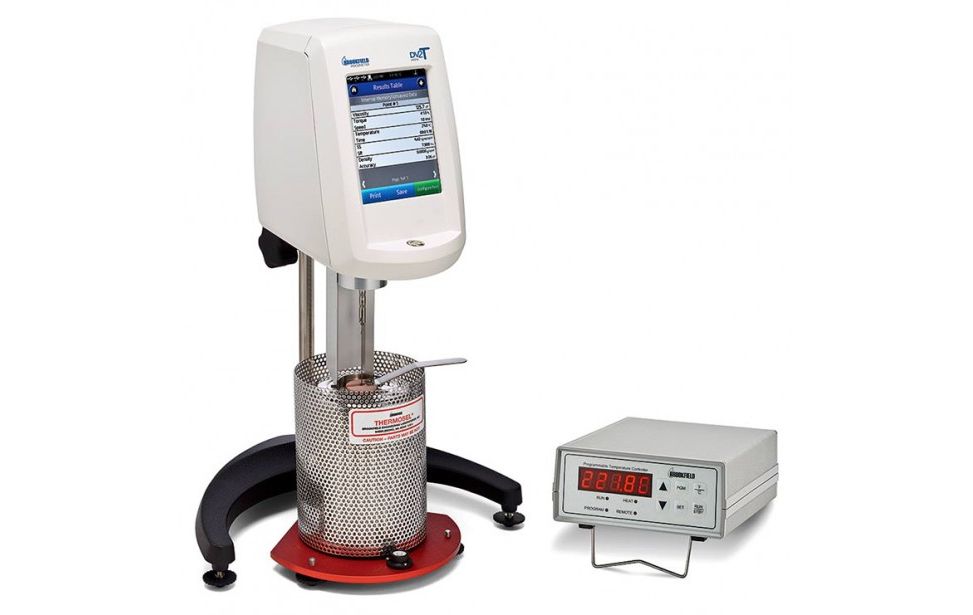

Thermosel®

For elevated temperature testing

Features :

• Compatible with standard AMETEK Brookfield Viscometers and DVNext Rheometers. Note: Requires optional cable (HT-106)

• Provides control of sample temperature up to +300°C

• Programmable Temperature Controller oers single set point or up to 10 programmable set points

• Magnetic Coupling Option The Thermosel is also available to purchase with a magnetic spindle coupling system. This option allows spindles to be quickly attached and removed, and may also help prevent against damage that can occur from frequent spindle changes or multiple users

• Thermo Container (Heating Chamber)

• Direct Temperature Control Possible with DV2T/DVNext Rheometer

• Computer Controlled when used with RheocalcT Software

• Temperature Ramping between set points is possible if used with RheocalcT Software Features

Consisting of :

• Alignment Bracket

• Thermo Container with safety guard and insulating cap (HT-110 specify when ordering)

• Temperature Controller with an RTD probe (Specify when ordering)

• Choice of one SC4 Spindle (Specify when ordering)

• 5 Disposable Sample Chambers (Order additional chambers in quantities of 100, HT-2DB-100)

• 1 Removable Sample Chamber

• Extracting Tools
