PRODUCT | DS 8008

Product name : DS 8008
Category : Water Distilling » DragLab
Catalog : DS_8008_support.pdf

Description

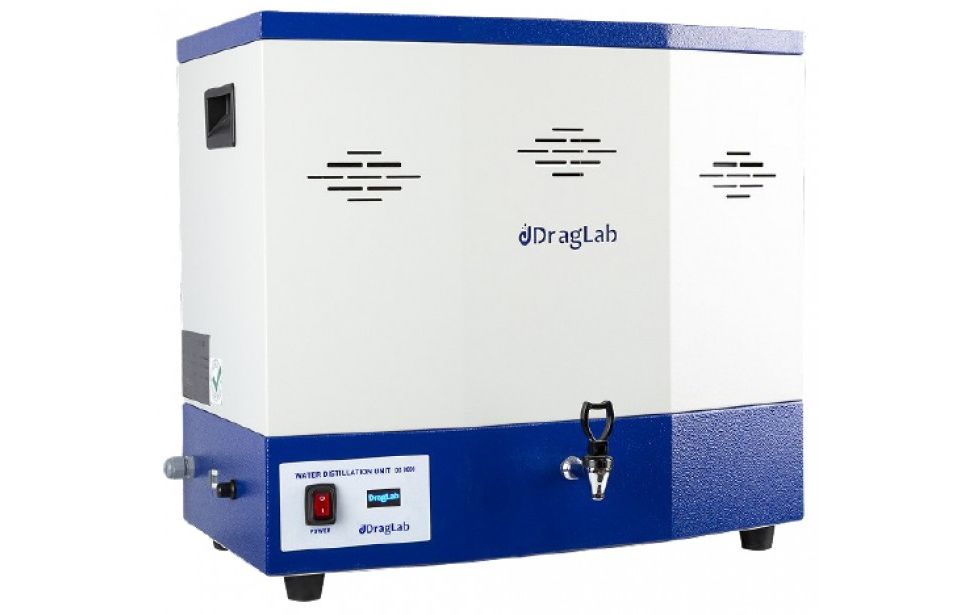

DS 8008

Laboratory Water Still

Professional, fully automatic water distiller with a production capacity of 8 liters per hour and an integrated 16-liter storage tank. Constructed from high-quality stainless steel, this distiller is designed to produce high-purity distillate autonomously, eliminating the need for continuous personnel supervision.

Application:

• Biotechnology, cell culture and media prepara-tion

• Testing, analysis and research laboratories

• Microbiology and Bacteriology sample prepara-tion

• Food and beverage production

• Sterilization, cleaning and Medical equipment.

• Cosmetics, skincare products production.

• Electronics and Automotive.

• Pharmaceutical manufacturing and drug formulation.

Features:

• Distillation Capacity : Produces 8 L/h of distilled water.

• Storage Tank : Integrated with an 16-liter storage tank.

• Purity : High-purity distilled water with conductivity of approximately 2.5 μS/cm at 25 °C.

• Water Quality : Pyrogen-free, low-gas, and bacteria-free water.

• Protection : Automatic thermostatic low-water cut-off to protect the heating element in case of low water.

• Operation : Automatic water switching for continuous functionality.

• Energy Efficiency: Energy and water-saving through an automatic distillation process.

• Display: Screen indicating water level in the storage tank, heater operation status, water supply, error status check, and user instructions.

• Maintenance : Easily accessed evaporator tank for effortless cleaning and maintenance.

• Material : All water contact materials are made of stainless steel (material no.: EN 1.4301).

• Heating Element : Made of stainless steel (material no.: EN 1.4301).

• Housing : Galvanized steel with electrostatic powder coating.

• Installation : Suitable for both bench and wall mounting.

• Accessories : All parts and accessories for installation included.

Specifications:

Capacity
Capacity	8 litter / hour
Storage Tank	Integrated 16 Litter storage tank
Consumption	80 litter / hour
Conductivity	Approximately 2,5 µS/cm at 25 C
Control technology
Fully Automatic	Automatic thermostatic power cut-off to protect the heating element in case of low water
Fully Automatic	Automatic power activation when the water level reaches the safety line in the evaporator tank to protect the heating element.
Water supply	Built-in solenoid valve connection for the evaporator and cooler, with auto-matic switching on/off based on the water level in the evaporator tank.
Standard equipment
Internal material	The tank is made of stainless steel (material no. EN 1.4301)
Internal material	The condenser (cooler) is made of stainless steel (material no. EN 1.4876).
Internal material	The heating element is made of stainless steel (material no. EN 1.4876).
External material	The housing is made from galvanized steel and coated with electrostatic pow-der.
Degassing system	The unit includes a top vent for effective degassing, ensuring pyrogen-free, low-gas, and bacteria-free water.
Accessing interior	The evaporator is easily accessible for cleaning and maintenance, facilitating efficient cleaning procedures.
Installation	All necessary parts and accessories for installation are included.
Distillate water withdrawal	Distillate water can be continuously withdrawn by opening the drain tap.
Main switch	The main power switch button located on the front of the unit
Screen	The device features a screen indicating water level in the storage tank, heater operation status, water supply, error status check, and user instructions.
Mounting	Suitable for both benchtop and wall mounting.
Safety
Water	Low water level sensor with automatic power cut-off to protect the heating element.
Heating	Overheating cut-off
Screen	The screen displays startup tests for the heating element and provides visual alarms for faults and errors.
Degassing	pyrogen-free, low-gas, and bacteria-free water.
Power connection	Power cable with German shock-proof type (Schuko)) plug
Connection
Water inlet	The cooling water inlet is located on the right-hand side of the unit, with a diam-eter of 3/4 inch (Ø 19.05 mm).
Water pressure range	From 2 bars to 10 bars
Water outlet	The cooling water outlet is located on the right-hand side of the unit, with a di-ameter of 2/5 inch (inner Ø 10 mm).
Drainage tap	The drainage tap is located on the right-hand side of the unit, with a diameter of 2/5 inch (inner Ø 10 mm).
Distillate water	Distillate water can be continuously withdrawn by opening the drain tap.
Power	The main connection cable on the left-hand side of the unit
Electrical data
Voltage	380 volts, 50/60Hz
Watt	6000 watts
Shipping information
Customs tariff number	8419 4090
Packaging Dimension	94 W X 54 D X 84 H (CM)
Net weight	40 Kg
Gross weight carton	46 Kg
